HOME > Specialty Grades > High Purity PVOH EG Series

Specialty Grades

High Purity PVOH EG Series

GOHSENOL™ EG Series

GOHSENOL™ EG is a high quality PVOH free of impurities to the utmost, and complies with the excipient specifications of JPE, USP, as well as EP.

Technical Information by Appication

Chemical Structure

Chemical Structure

Features
GOHSENOL™ EG is a water-soluble resin which shows low skin irritation properties. It functions as a pharmaceutical excipient including a coating and granulation agent, and a cosmetic additive such as a film former and a thickener.
Also, GOHSENOL™ EG has a surfactant behavior, and functions as a polymer emulsifier for a UV absorbent, silicon, polar oil, and nonpolar oil to create a soap-free emulsifier.
Grades and Technical Specifications (Pharmaceutical Excipient Grade)
■Granule Type
Grades Degree of
Hydrolysis
(mol%)
Viscosity*1*2
(Center value)
(mPa・s)
Main application
EG-03P 86.5-89.0 3.0-3.7 (3.4) Emulsifier, Immediate Release Binder
EG-05P 4.8-5.8 (5.3) Binder, Granulating Agent, Base of OD Film
EG-18P 16.0-20.0 (18.0) Binder
EG-22P 20.0-24.5 (22.3) Binder
EG-30P 27.0-33.0 (30.0) Gel Patch
EG-40P 40.0-46.0 (43.0) Thickener, Emulsifier
EG-48P 45.0-52.0 (48.5) Thickener

※1. Viscosity of 4% aqueous solution at 20℃, viscosity specifications conforming to laws are also available.

■Powder Type
Grades Degree of
Hydrolysis
(mol%)
Viscosity*1*2
(Center value)
(mPa・s)
Main application
EG-05PW 86.5-89.0 4.8-5.8 (5.3) Binder, Film Coating Agent
EG-30PW 27.0-33.0 (30.0) Gel Patch, Thickener
EG-40PW 40.0-46.0 (43.0) Binder

*1.4% water solution at 20 ℃
*2.indicated as general values. We have viscosity standards corresponding to respective pharmacopoeia.

Approved Standards
  • ・Japanese Pharmaceutical Excipients (JPE)
  • ・European Pharmacopoeia (EP)
  • ・United States Pharmacopoeia (USP)
  • ※Drug Master File No. 26119

example


Grades and Technical Specifications (Industrial Grade)
Grade Saponification Degree
(mol % )
Viscosity ※1
(mPa・s)
Sodium Acetate (%)
EG-05 86.5~89.0 4.8~5.8 0.15以下
EG-40 86.5~89.0 40.0~46.0 0.15以下

※1. Viscosity of 4% aqueous solution at 20℃


Applications of Industrial and Cosmetic Grades
Cosmetic Raw Materials Substrate resin for peel off mask,
Thickener for lotion, cream,
Binder for mascara, eyeliner,
Emulsifier for milky lotion, sun block
Electrical Materials Fluorescent material binder,
Illuminant binder
Ceramics Fine ceramics binder
Others Enzyme fixing carrier
Biochemical raw material
Gel type raw material for regeneration medicine
Emulsion Application
GOHSENOL™ EG adheres to the surface of hydrophobic oil and stabilizes the drop by forming a protective colloid layer.
GOHSENOL™ EG

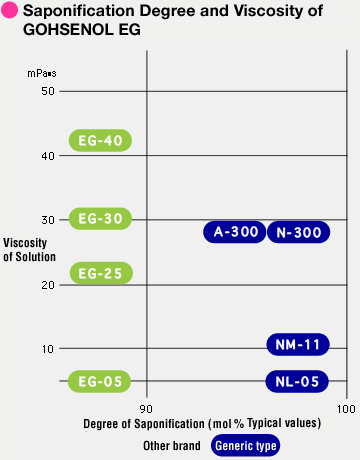

Aqueous Solution Viscosity of GOHSENOL™ EG series (G type, 20℃)

Aqueous Solution Viscosity of GOHSENOL™ EG series (G type, 40℃)

Aqueous Solution Viscosity of GOHSENOL™ EG series (G type, 60℃)

Inquiry about EG series (Pharmaceutical Excipient Grades)
Life Chemical Dept. Sales and Marketing Div.
TEL: +81-3-6436-2813 / FAX: +81-3-6436-2820
