Technical Information
Characteristics of GOHSENOL

Film Forming And Mechanical Properties
GOHSENOL has excellent film forming properties and the resulting films have excellent characteristics such as high transparency, high gas impermeability, high resistance to organic solvents, high antifogging properties, high antistatic properties, high moisture permeability, and easy water solubility. It is has been effectively used in various packaging materials by making full use of these excellent characteristics.
The mechanical strengths of GOHSENOL films increase with the polymerization degree or saponification degree.

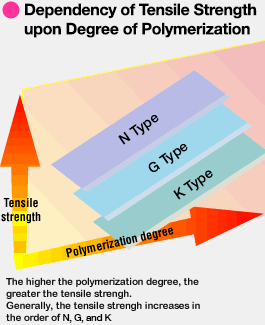

Dependency of Tensile Strength upon Polymerization Degree


Mechanical Properties of GOHSENOL
Grade
Tensile Strength (kg/cm²)
Elongation at Break (%)
N-300
690
140
NM-14
550
135
NL-05
350
120
GH-17
560
150
GM-14
530
150
GL-05
330
120
Values obtained at 20 degree C 65% RH
