Viscosity and Specific Gravity of GOHSENOL™ Aqueous Solutions

The following graphs show dependency of aqueous solution viscosity upon concentration and temperature separately for grades (viscosity was measured according to JIS K 6726). The graph on the bottom shows specific gravity of aqueous solutions.

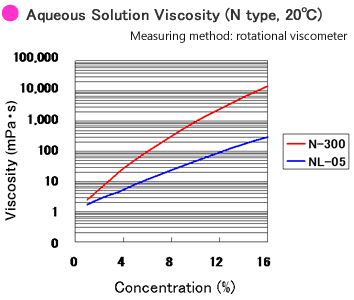

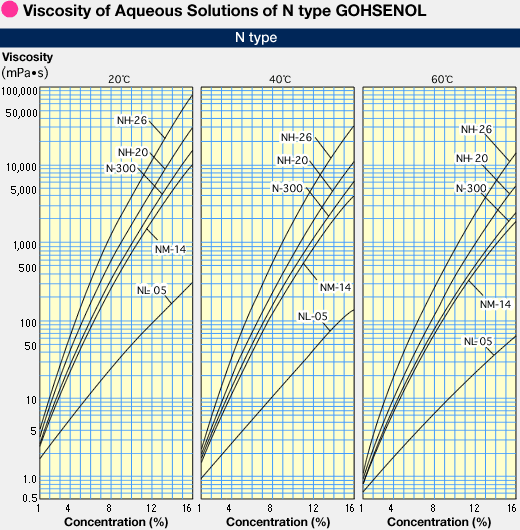

Aqureous Solutions Viscosity N type 20 °C

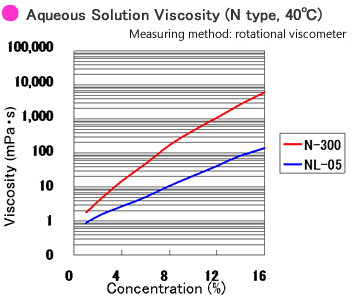

Aqureous Solutions Viscosity N type 40 °C

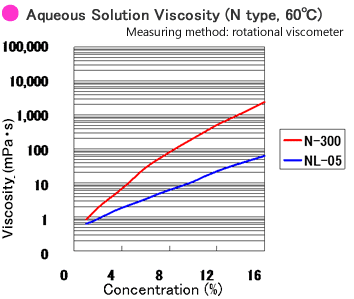

Aqureous Solutions Viscosity N type 60 °C

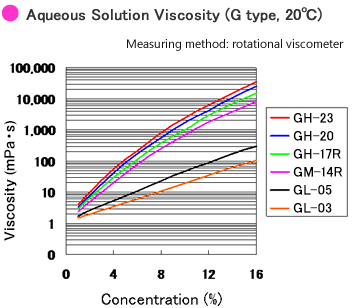

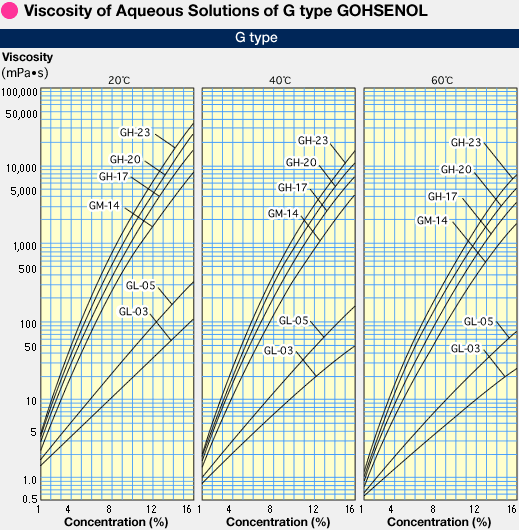

Aqureous Solutions Viscosity G type 20 °C

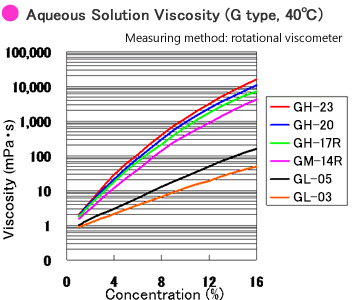

Aqureous Solutions Viscosity G type 40 °C

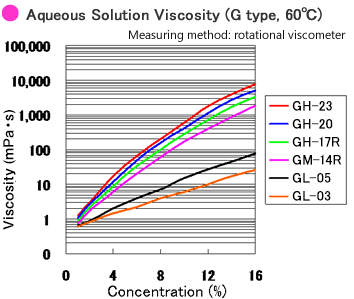

Aqureous Solutions Viscosity G type 60 °C

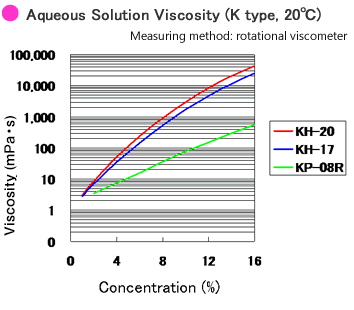

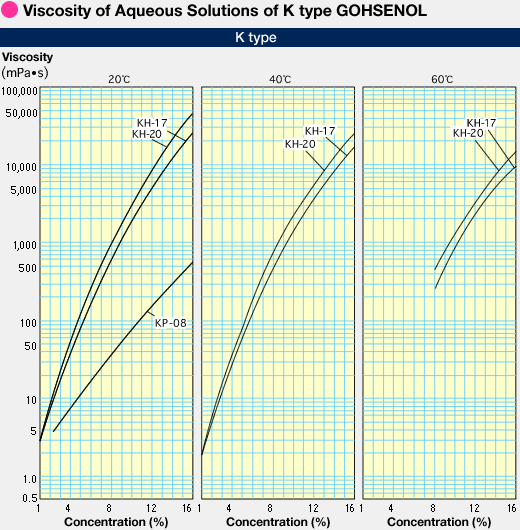

Aqureous Solutions Viscosity K type 20 °C

Aqureous Solutions Viscosity K type 40 °C

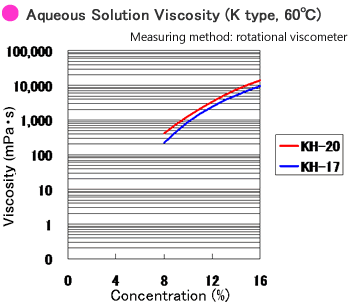

Aqureous Solutions Viscosity K type 60 °C

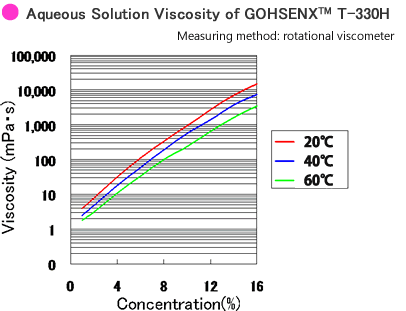

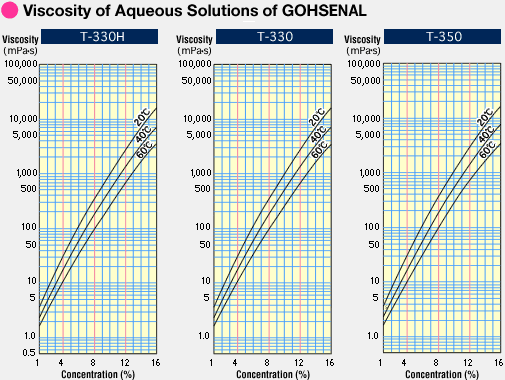

Aqureous Solutions Viscosity of GOHSENX™ T-330H

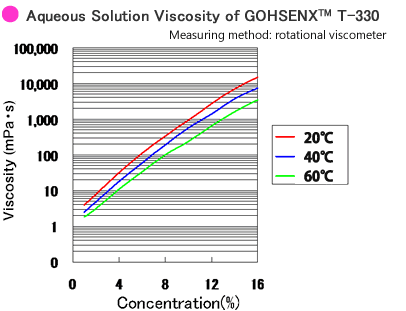

Aqureous Solutions Viscosity of GOHSENX™ T-330

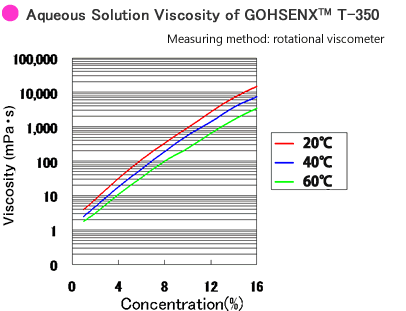

Aqureous Solutions Viscosity of GOHSENX™ T-350

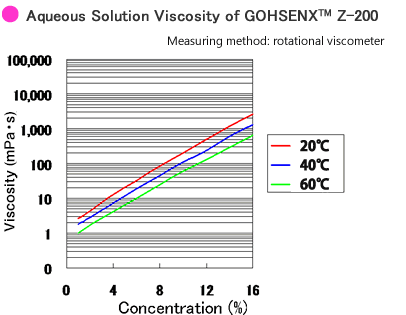

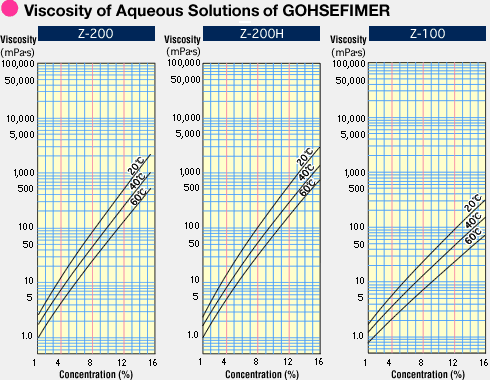

Aqureous Solutions Viscosity of GOHSENX™ Z-200

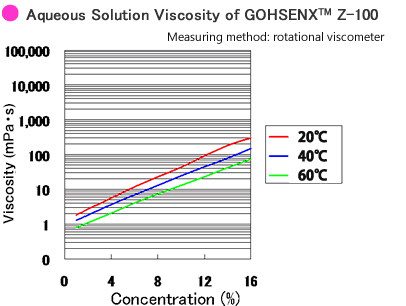

Aqureous Solutions Viscosity of GOHSENX™ Z-100

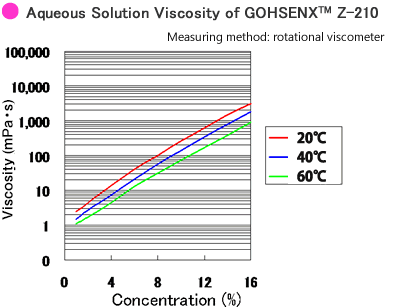

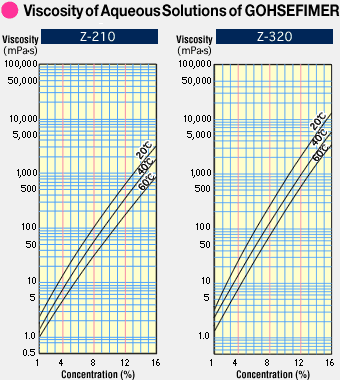

Aqureous Solutions Viscosity of GOHSENX™ Z-210

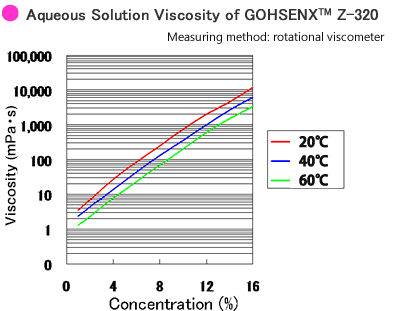

Aqureous Solutions Viscosity of GOHSENX™ Z-320

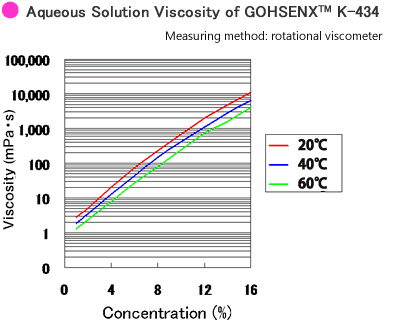

Aqureous Solutions Viscosity of GOHSENX™ K-434

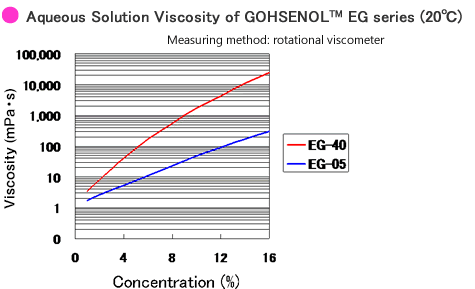

Aqureous Solutions Viscosity G type 20°C

Aqureous Solutions Viscosity G type 40°C

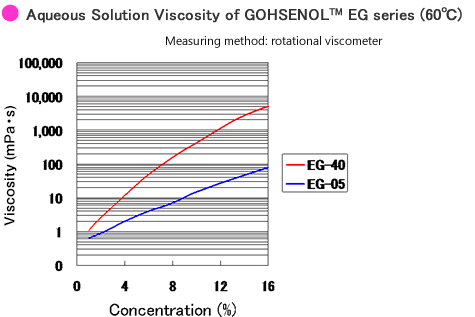

Aqureous Solutions Viscosity G type 60°C

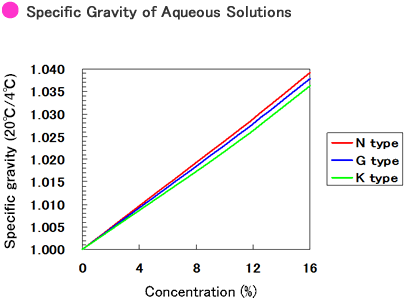

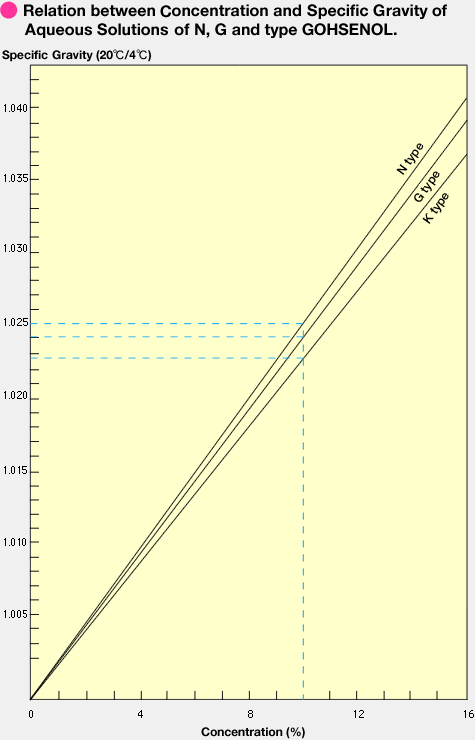

Specific Gravity of Aqueous Solutions
